E-Switch

E-Switch offer a wide range of electromechanical switch products, which include tact, anti-vandal, pushbutton, rocker, toggle, slide, DIP, rotary, keylock, snap action, power, illuminated switches and more. E-Switch product applications include the telecom, high tech, medical, electronics, instrumentation, industrial, audio/visual, appliance and consumer markets..

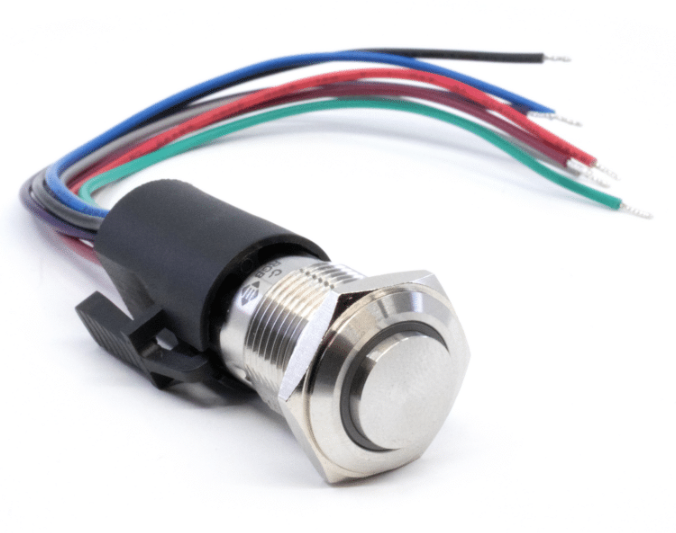

E-Switch PVHC7 Series

Features:

  • PVB3 Series socket extension with 22AWG, 140mm long wire leads
  • IP67; 16mm diameter panel cutout
  • Non-illuminated, LED or RGB illumination options
  • UL recognized: 5A/250VAC (Resistive), 1.5A/250VAC (Inductive)
  • SPDT; Momentary or Latching functions

Product Documentation

PVPB3 Datasheet | PDF

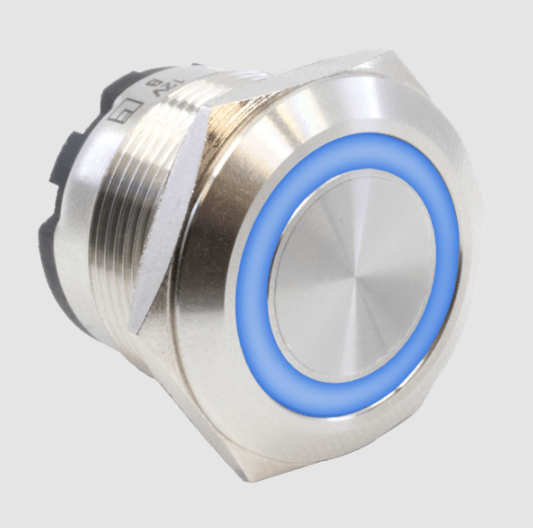

E-Switch PVHC7 Series

Features:

  • Electrical Rating: 20A @ 250VAC
  • 22mm diameter panel cutout
  • IP67 rated
  • Non-illuminated, ring or ring/power symbol illumination with LED options
  • SPST; latching or momentary function
  • Stainless steel or black anodized body and actuator finish

Product Documentation

PVHC7 Datasheet | PDF

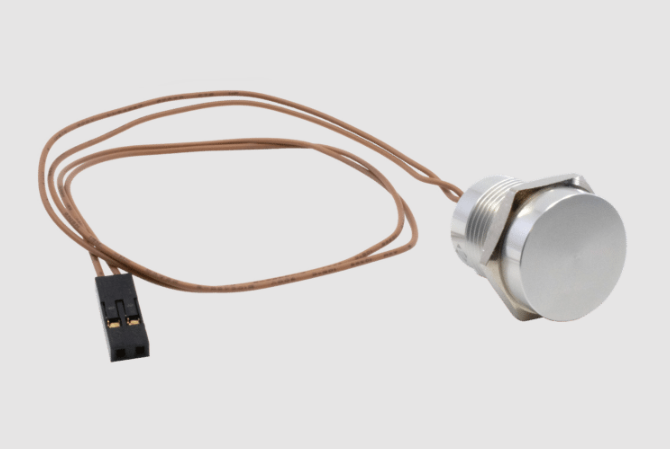

E-Switch PB350 Series

Features:

  • 16mm panel cutout
  • IP68 (in-house tested)
  • Electrical Rating: 1A, 5-24VDC
  • Momentary Pulse Function
  • 300mm wire leads with 1×2 connector housing pin
  • Electrical Life: 50 million cycles

Product Documentation

PZ3 Datasheet | PDF
E-Switch PB350 Series

Features:

  • SPST or SPDT/Double action
  • Double action: first circuit closes mid travel, second at full travel
  • Long travel – 2.0mm
  • High actuation force (ST: 490 grams; DT: 1st position – 600 grams, 2nd position – 1,150 grams)
  • Tactile response
  • LED colors: red, white, yellow, blue or green

Product Documentation

PB350 Datasheet | PDF

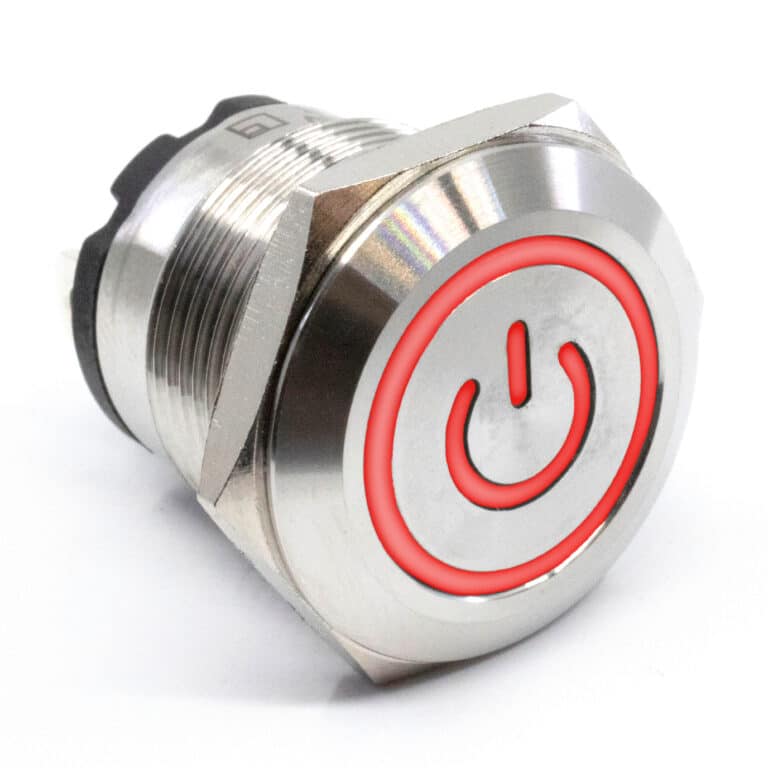

E-Switch PVHC4 Series

Features:

  • Electrical Rating: 20A, 250VAC; 25A, 30VDC
  • 19mm diameter panel cutout
  • IP67 rated
  • Non-illuminated, ring or ring/power symbol illumination with LED options
  • SPST; latching or momentary function
  • 50,000-cycle electrical life

Product Documentation

PVHC4 Datasheet | PDF

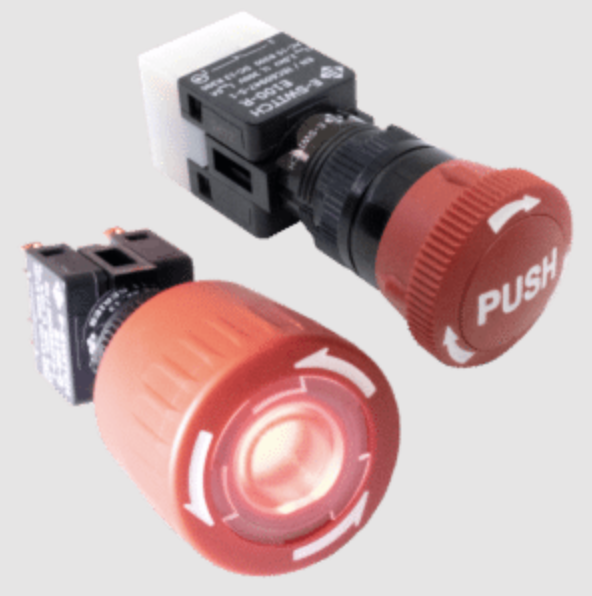

E-Switch E100 E200 Series

Features:

  • IP65 ratedh
  • Easy operation
  • High actuation force
  • Multiple illumination options
  • Pushlock turn design to reset
  • 16mm cutout size

Product Documentation

E100 Datasheet | PDF
E200 Datasheet | PDF
E-Switch RB5 Series

Introducing the RB5 Series rocker switch, designed with high quality and high reliability. Sealed switches are available with five electrical ratings, providing IP67 rating. Dual Illumination is available in five colors. This switch also features eight marking options.

The RB5 Series rocker switch is meant for front panel mounting in cutouts sized 22mm by 30.2mm. These rockers perform two pole maintained or momentary functions. Electrical ratings range from 16-20amps and the electrical life on these switches are 10,000 cycles. All RB5 Series rockers are cURus and ENEC15 approved.

Applications:

  • Floor Care Appliances
  • Electrical Housewares
  • Medical/Dental
  • Industrial Controls
  • Commercial Appliances
  • Instrumentation

Features:

  • High Quality and Reliable Switch
  • Industry Standard 22mm x 30.2mm Cutout
  • Illumination Options
  • Marking Options
  • Multiple Actuator Options
  • Front Panel Mount Applications
  • 2 Pole Maintained and Momentary Functions

Product Documentation

RB5 Series Switch | PDF
e-switch-pv_series

The anti-vandal switches offered by E-Switch include eight PV-series of switches ranging from 16mm diameter panel cutout, up to 25mm. Many illumination options. Anti-vandal switches can be found on elevators and kiosk applications. With a wide variety of options, including illuminated, sealed and long life expectancy.

PV1 Series Long Life, Water Resistant Anti-vandal Switches


  • 19mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Solder and screw terminal options available
E-Switch PV1 Series

PV2 Series Water Resistant, Long Life Anti-vandal Switches


  • 16mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Solder and screw terminal options available
E-Switch PV2 Series

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switches


  • 16mm diameter panel cutout
  • Dot and ring illumination options available
  • 1 or 2 poles momentary functions
  • Up to IP65 rating
E-Switch PV3 Series

PV4 Series Illuminated, Sealed, Long Life Anti-vandal Switches


  • 19mm diameter panel cutout
  • Dot and ring illumination options available
  • 1 or 2 poles maintained, momentary and
    double break functions with IP65 rating
E-Switch PV4 Series

PV5 Series Sealed, Long Life Anti-vandal Switches


  • 12mm diameter panel cutout
  • Solder terminal options available
  • 1 pole momentary switch
  • IP65 rated
E-Switch PV5 Series

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switches


  • 16mm diameter panel cutout
  • 1 pole Off-(On) with IP65 rating
  • Dot and ring illumination options available
  • Solder and screw terminal options available
E-Switch PV6 Series

PV7 Series Sealed, Long Life, Illuminated Anti-vandal Switches


  • 22mm diameter panel cutout
  • Dot and ring illumination options available
  • 2 poles maintained and momentary functions
  • IP65 rated
E-Switch PV7 Series

PV8 Series Illuminated, Sealed Anti-vandal Switches


  • 25mm diameter panel cutout
  • 1 or 2 poles maintained and momentary functions
  • Dot and ring illumination options available
  • IP65 rated
E-Switch PV8 Series

E-Switch 500R Series

The 500R series sealed slide switch offers IP67 ratings for protection from water, dust and the elements. It comes in up to 3-positions and has both SPDT and DPDT options.

This slide switch can work well in a variety of applications and markets, where protection from moisture and dust is of a concern.

Product Documentation

500R Series IP67 Switch | PDF
E-Switch RBW2 Series

Finally a fully illuminated power-rated rocker switch that is sealed to IP66 ratings WITHOUT THE BOOT! No rubber boot / PVC cap is needed for our brand new RBW2 series rocker switch. It uses a patented sealing technology (Patent No. US 7,872,205 B2) to provide protection from dust and moisture all while offering full illumination!

  • Approved under new UL 61058-1 rating.
  • UL approved up to 1/3 HP

The markets for the new fully illuminated RBW2 series sealed rocker switch include commercial appliances, electrical housewares, floor care appliances, industrial controls, medical equipment and white goods.

Product Documentation

RBW2 Series Rocker Switch | PDF
E-Switch RDT Series

The RDT series Rotary DIP switch offers convenience in a small package size. It is sealed to IP67 ratings, offering protection from the elements for more rugged applications. This rotary DIP switch offers up to 16 positions and has right angle or vertical mounting options. The RDT series rotary DIP switch can come with SMT or thru hole termination.

This switch can be used in many markets, including audio/visual, computer peripherals, consumer electronics, instrumentation, telecommunication and medical devices.

Product Documentation

RDT Series Rotary Dip Switch | PDF
E-Switch 700A Series

This sealed pushbutton switch has a snap acting contact design and comes with multiple termination options. Sealed to IP67 specs. Great for applications in telecommunications, networking, computers/servers, performance audio, instrumentation and more..

Product Documentation

700A Series IP67 Switches | PDF
E-Switch 800A Series

This sealed sub-miniature pushbutton switch has a butt contact design and an IP-67 sealed option. Markets for this switch include telecommunications, networking, computers/servers, performance audio, instrumentation, low power on/off designs, external hard drives and modems.

Product Documentation

800A Series IP67 Push Button Switches | PDF
